Cooling tower performance degradation diagnosis requires a structured, data-driven evaluation of thermal efficiency, airflow integrity, water distribution, and system cleanliness. The most reliable indicator is approach temperature rise, which signals declining heat transfer performance.
Engineers must combine root cause analysis, fan current monitoring, and inspection of fill fouling to isolate failures. A systematic diagnosis approach ensures that operators identify the exact source of inefficiency—whether mechanical, hydraulic, or chemical so corrective actions restore performance quickly and prevent recurring operational losses.
How Performance Degradation Actually Shows Up in Real Systems
Early Warning Indicators Engineers Often Miss
Performance loss rarely happens suddenly in industrial environments. Equipment experiences a gradual operational drift before major failures occur. You must track daily metrics to catch these subtle changes early.
Look closely at your data logs to find these hidden patterns. Pay attention to these early warning signs:
- Slight increase in approach temperature during peak load conditions
- Gradual rise in fan current over several weeks
- Increased blowdown frequency without a clear operational reason
- Minor drop in overall cooling range efficiency
Measurable Signs of Thermal Inefficiency
System operators can quantify efficiency losses using direct physical measurements. These indicators confirm that degradation currently impacts your system performance. You need accurate sensors to capture this data correctly.
Review your control system for these specific measurable signs:
- Approach temperature consistently sits above the original design value
- Plant heat rejection capacity drops below required operational limits
- Connected systems experience higher condenser pressure during normal operation
- Pumps and fans demonstrate significantly increased energy consumption
Why Ignoring Early Signals Leads to System Failure
Small inefficiencies compound rapidly into major operational disasters. Heat transfer surfaces degrade exponentially once initial deposits form. Facility managers face massive repair bills when they ignore early warnings. Notice how these ignored signals escalate:
- Heat exchanger fouling accelerates across all system components
- Mechanical equipment operates completely outside the intended design envelope
- Emergency maintenance costs increase significantly beyond the planned budget
- System reliability drops dangerously low under peak thermal demand
Using Approach Temperature to Quantify Performance Loss
What Approach Temperature Actually Represents
Approach equals the cold water temperature minus the wet bulb temperature. This metric directly measures cooling tower effectiveness in real time. A lower approach translates directly to better overall system performance.
How to Interpret Approach Temperature Rise
Tracking temperature changes tells you exactly how the equipment degrades. System operators must understand what different temperature increases mean.
Consider these standard interpretations of an approach temperature rise:
- An increase of 1–2°C indicates early fouling or airflow imbalance
- An increase of 3–5°C reflects significant system inefficiency
- An increase above 5°C signals critical performance degradation
Practical Diagnostic Use in the Field
Engineers use temperature data as their primary diagnostic tool. You must collect this data under stable load conditions for accuracy. Environmental factors will impact your readings if you remain careless. Apply these practical diagnostic methods in your facility:
- Track the approach temperature daily during peak operational hours
- Compare current readings directly against original manufacturer design specifications
- Correlate all temperature variations with local weather and thermal load changes
- Establish this metric as your primary key performance indicator
Root Cause Analysis Framework for Cooling Towers
Why Random Troubleshooting Fails
Unstructured inspection always leads to costly misdiagnosis and wasted time. Maintenance teams often replace components without understanding the actual problem.
You cannot fix complex thermal systems by guessing the faulty part. Observe how random troubleshooting harms the plant:
- Technicians fix symptoms instead of locating the actual root cause
- Facilities replace expensive components completely unnecessarily
- Engineers ignore critical system-level interactions between different pieces of equipment
- Plants experience repeat failures of the exact same mechanical parts
Systematic Diagnosis Approach
For a successful cooling tower performance degradation diagnosis, engineers must start from the point of performance loss and trace the issue backward. Following a rigid diagnostic sequence is crucial to finding the true cause of the failure.
Skipping steps in this process can blind you to the actual equipment problem.
Follow this exact systematic diagnosis pathway:
- Step 1: Thermal Performance: Confirm the actual performance loss.
- Step 2: Airflow System: Check the entire mechanical airflow system.
- Step 3: Water Distribution: Evaluate the full water distribution network.
- Step 4: Internal Fill: Thoroughly inspect the condition of the internal fill.
- Step 5: Water Chemistry: Analyze the current water chemistry completely.
Data Points Required for Accurate Diagnosis
Data drives a land completely blind. Gather these specific data points before beginning your analysis:
- Approach temperature trends over the last six months
- Fan motor electrical current and mechanical vibration data
- Flow rate measurements across the entire primary cooling loop
- Conductivity readings and automated chemical dosing system logs
Airflow System Failures and Their Impact on Performance
Fan and Motor Performance Issues
Mechanical resistance destroys airflow efficiency over time. Reduced rotational speed drastically lowers total air movement through the tower. A high fan current usually indicates severe mechanical resistance within the gearbox. Technicians must inspect blades for damage that reduces aerodynamic efficiency.
Air Distribution Problems
Air must flow evenly across the entire heat transfer surface. Blocked intake louvers restrict airflow and choke the cooling process, a key factor in cooling tower performance degradation diagnosis.
A clogged drift eliminator prevents saturated air from leaving the structure. Uneven airflow creates distinct thermal imbalances that ruin system efficiency.
Real Operational Insight
Airflow issues often appear as thermal inefficiency rather than mechanical failure.
- A 10% reduction in airflow can cause up to 30% performance loss
- Fan-related problems are frequently misdiagnosed as water chemistry issues

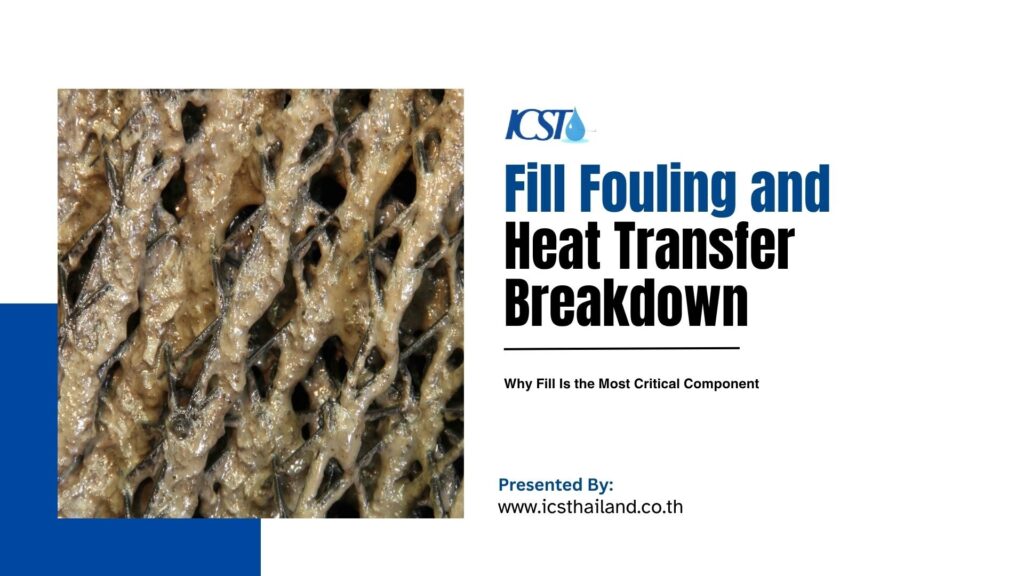

Fill Fouling and Heat Transfer Breakdown
Why Fill Is the Most Critical Component
Fill material provides the massive surface area required for heat exchange. Any physical blockage directly reduces total cooling capacity immediately. Fill fouling essentially acts as thick thermal insulation. Water cannot transfer heat to the air when deposits cover the plastic.
Types of Fill Fouling
Different contaminants destroy fill material in unique ways. Identifying the specific deposit type dictates your cleaning strategy. You must test the deposits to confirm their chemical composition. Watch out for these common types of fouling:
- Scaling from calcium, magnesium, or silica deposits
- Biological growth, such as algae and biofilm
- Accumulation of suspended solids and debris
Impact on System Performance
Fouling destroys the primary function of the cooling equipment. Reducing contact between air and water stops the evaporation process. The plant experiences an immediate increase in approach temperature. Operators will notice significantly higher energy consumption across all pumps.
Inspection and Diagnosis Method
Visual confirmation remains the best way to evaluate fill condition. Technicians must utilize specific tools to assess the internal damage. You cannot see the center of the fill pack from the outside. Use these inspection methods to verify fill health:
- Perform visual inspections using borescopes to locate deep internal deposits
- Measure the static pressure drop across the entire fill section
- Utilize thermal imaging cameras to identify uneven internal cooling zones
- Weigh a sample piece of fill to quantify total scale accumulation
Water Distribution System Imbalance
How Poor Distribution Affects Cooling
For a proper cooling tower performance degradation diagnosis, it’s crucial to examine the water distribution. Water must coat the fill material evenly for maximum efficiency. Uneven water flow wastes the available surface area, leading to poor performance.
Dry spots in the fill pack drastically reduce total heat transfer. Air naturally bypasses wet areas to flow through these dry spots.
Common Causes
Distribution systems fail due to several common mechanical issues. Debris in the piping network frequently causes major flow disruptions. You must maintain the piping network to prevent these failures. Look for these specific common causes during inspections:
- Blocked spray nozzles prevent water from reaching the target area
- Incorrect nozzle pressure alters the designed water spray pattern
- Header misalignment directs water against the tower casing walls
- Broken distribution branches dump heavy streams of unatomized water
Diagnostic Indicators
Operators can visually identify distribution problems while the tower runs. You just need to know exactly what to look for. System performance will drop despite having perfectly normal airflow. Check for these clear diagnostic indicators of distribution failure:
- Visible dry patches exist on the top layer of the fill
- Thermal cameras show a highly uneven temperature distribution across the basin
- Plant efficiency drops while fan motor amperage remains perfectly normal
- Water splashes heavily outside the designed collection basin area
Performance Degradation Comparison Table
Effective cooling tower performance degradation diagnosis requires comparing multiple operational parameters. Engineers use structured matrices to isolate specific failure modes.
| Parameter | Airflow Issue | Fill Fouling | Water Distribution Problem | Chemistry Imbalance |
| Approach Temperature | High | Very High | Moderate | High |
| Fan Motor Current | High | Normal | Normal | Normal |
| Visual Inspection | Blade issues | Deposits visible | Dry spots present | Cloudy water |
| Energy Consumption | High | High | Moderate | High |
| Failure Speed | Medium | Fast | Medium | Slow buildup |
Step-by-Step Systematic Diagnosis Workflow
Step 1: Confirm Performance Loss
Start by measuring the approach temperature accurately. Compare your new readings directly with the original design values. Verify that your temperature sensors have current calibration certificates. Do not proceed until you confirm an actual thermal loss exists.
Step 2: Evaluate Airflow System
Check the fan rotational speed and the motor electrical current. Inspect the composite blades and the complete airflow path for obstructions. Listen carefully for unusual mechanical noises coming from the gearbox assembly. Ensure the variable frequency drive operates at the correct frequency.
Step 3: Inspect Fill Condition
Look deeply into the pack for scaling or biological growth. Assess the total blockage severity using a static pressure differential gauge. Pull a sample piece of fill to check the internal weight. Document any structural sagging caused by heavy scale deposits.
Step 4: Check Water Distribution
Inspect all target nozzles and verify the specific spray pattern. Identify any dry zones located across the top of the fill. Check the lateral distribution pipes for internal debris accumulation. Verify that the main header maintains the correct operating pressure.
Step 5: Analyze Water Chemistry
Review the system conductivity logs and the chemical dosing records. Evaluate the current scaling risk using the Langelier Saturation Index. Test the basin water for specific active biocide concentration levels. Adjust the automated blowdown controller to maintain the correct cycles of concentration.
Final Thoughts
Cooling tower performance degradation diagnosis demands a rigid, data-driven approach. You cannot rely on trial and error to fix complex industrial systems. Engineers must prioritize measurable indicators like approach temperature and airflow performance. Combining root cause analysis with real operational data allows teams to isolate failures quickly.
Proactive monitoring remains the most effective strategy for plant management. You must track performance trends and maintain strict water chemistry parameters. Inspecting critical components regularly prevents aggressive fill fouling and mechanical breakdowns.
For more expert guidance on cooling tower diagnostics or to request urgent repairs, visit the ICST website.
Frequently Asked Questions
What is the first sign of cooling tower performance degradation?
The earliest sign involves a slight increase in approach temperature. This specific metric indicates reduced heat transfer efficiency immediately. The system might appear to function normally while losing thermal capacity. Monitoring this parameter daily helps detect issues before they cause critical failures.
How does fill fouling affect performance?
Fouling physically reduces the total surface area available for heat exchange. These hard deposits act as thick thermal insulation on the plastic. The water cannot reject heat into the passing air stream. This problem leads directly to higher approach temperatures and increased energy consumption over time.
Can airflow issues cause major performance loss?
Airflow remains absolutely critical for proper heat rejection. Even a small reduction in air volume significantly impacts cooling performance. Problems like fan inefficiency or blocked intake paths reduce system effectiveness. You must maintain clear air passages to keep the plant running efficiently.
Why is a systematic diagnosis important?
A structured diagnostic approach prevents misdiagnosis and unnecessary equipment repairs. It ensures that engineers identify the true root cause quickly. Treating mere symptoms wastes maintenance budgets and allows the underlying problem to worsen. Systematic evaluation leads to faster resolution and much lower maintenance costs.
How often should cooling tower performance be checked?
Operators should monitor key parameters like approach temperature and fan current daily. Automated sensors should log water chemistry variables every single minute. Maintenance personnel must conduct detailed visual inspections periodically. Frequent checks detect the early signs of fouling or mechanical deterioration before major failures occur.
